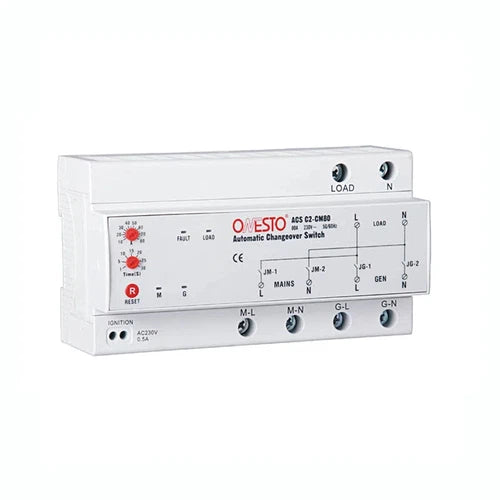

Automatic Changeover Switch DIN Onesto

OnestoSKU: ACS C2-CM80
No reviews

Size: 80𝐴
Poles: 1+N𝑃ole
Price:
Sale priceR 1,695.65

Stock:
In stock 2 units [HDN]

Pickup available at Archies Hardware

Usually ready in 1 hour

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

ACS C2-CM80
For one generators connection
10A-80A adjustable current
1s-30s adjustable restoring delay time
Operation status with LED indication
Automativ Generator ON/OFF ignition


Automatic changeover switch
No. of poles
1P+N
No. of generator connection
1
Rated current
10A-80A Adjustable (Mains & Generator)
Rated voltage
230V AC
Operating voltage range
0.75-1.15 of Un
Rated frequency
50/60HZ
Power consumption
4.5VA,230V AC
Rated insulation voltage
500V
Rated impulse voltage
1.5kV
Dielectric strength
2.0kV
Duty
Uninterrupted
LED indication
Mains:Blue,Generator:Blue,Load:Green,Fault:Red
Changeover delay time
Mains to Generator:3s, G1 to G2:3s ,Generator to Mains:1-30s Adjustable
Changeover line
Live and Neutral Line
Switching capacity
80A@230V AC (COSφ=1),30A with inductive load COSφ=0.6
Utilization catagory
AC 21A (IEC 60947-3),AC 31B (IEC60947-6)
Ambient temperature
-5 to 55℃
Pollution degree
2
Protection class
IP22
Mounting
DIN RAIL (35x7.5mm)
Mounting position
Horizontal,Vertival
Terminal capacity
16-25mm2
Dimension
162x89x70mm
Standard conformity
IEC 60947-7/IEC 60947-3
