Description

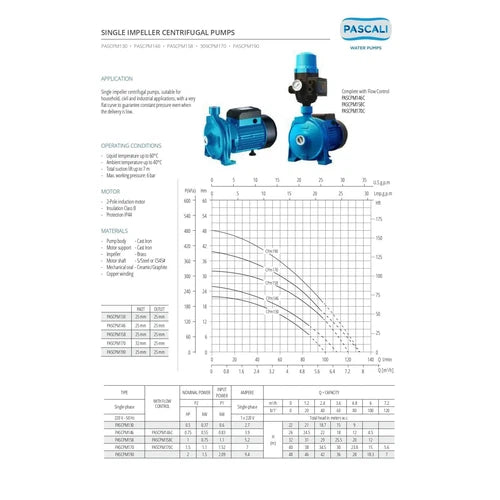

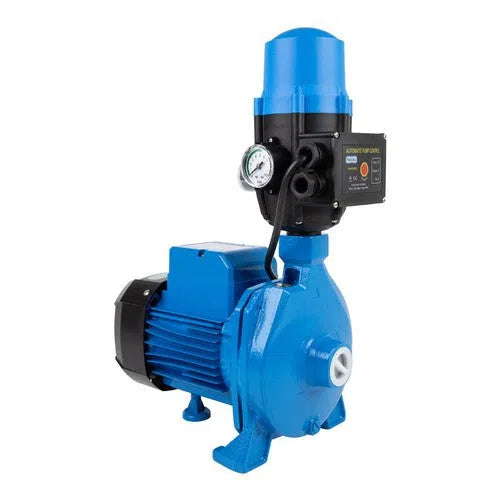

Single impeller centrifugal pumps, suitable for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery is low.
OPERATING CONDITIONS
- - Liquid temperature up to 60Β°C
- - Ambient temperature up to 40Β°C
- - Total suction lift up to 7 m
- - Max. working pressure: 6 bar MOTOR
- - 2-Pole induction motor
- - Insulation Class B
- - Protection IP44 MATERIALS
- - Pump body
- - Cast Iron
- - Motor support
- - Cast Iron
- - Impeller - Brass
- - Motor shaft - S/Steel or CS45#
- - Mechanical seal - Ceramic/Graphite
- - Copper winding
