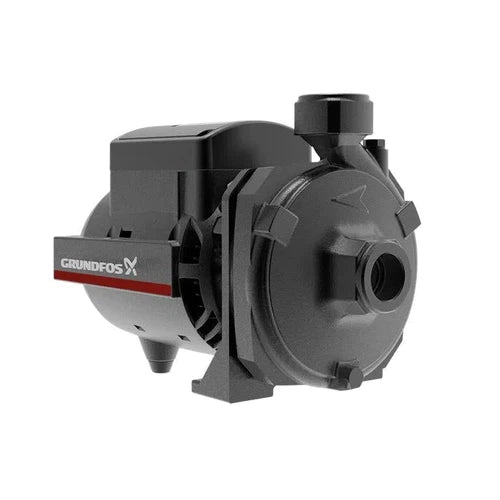

NS 4-23 CVBP
The Grundfos NS single horizontal centrifugal pumps feature cast-iron pump bodies and composite or cast-iron impellers for a long lifetime of reliable operation. The Grundfos NS are non-self-priming pumps, suitable for a variety of applications in private dwellings and light industry. The pump features a totally enclosed, fan-cooled induction motor. The rotor is mounted on oversized greased-for-life ball bearings, ensuring silent running and long life. Single-phase pumps have built-in overload protection and a capacitor that is permanently in circuit.
| Liquid: |
| Pumped liquid: |
|
Water |
| Liquid temperature range: |
|
-10 .. 50 °C |
| Selected liquid temperature: |
|
20 °C |
| Density: |
|
998.2 kg/m³ |
|
| Technical: |
| Primary shaft seal: |
|
CVBP |
| Approvals: |
|
CE,EAC,C-TICK,WEEE |
| Curve tolerance: |
|
ISO9906:2012 3B |
|
| Materials: |
| Pump housing: |
|
Cast iron |
| Impeller: |
|
Composite |
|
| Installation: |
| Range of ambient temperature: |
|
0 .. 40 °C |
| Maximum operating pressure: |
|
6 bar |
| Maximum permissible inlet pressure: |
|
4 bar |
| Type of inlet connection: |
|
Rp |
| Type of outlet connection: |
|
Rp |
| Size of inlet connection: |
|
1 |
| Size of outlet connection: |
|
1 |
|
| Electrical data: |
| Power input - P1: |
|
0.65 kW |
| Rated power - P2: |
|
0.37 kW |
| Mains frequency: |
|
50 Hz |
| Rated voltage: |
|
1 x 220-240 V |
| Rated current: |
|
3 A |
| Capacitor size - run: |
|
10 µF/450 V |
| Enclosure class (IEC 34-5): |
|
IP44 |
| Insulation class (IEC 85): |
|
F |
|
| Others: |
| Net weight: |
|
10 kg |
| Gross weight: |
|
10 kg |
| Shipping volume: |
|
0.021 m³ |
| Country of origin: |
|
IT |
| Custom tariff no.: |
|
84137090 |
|
