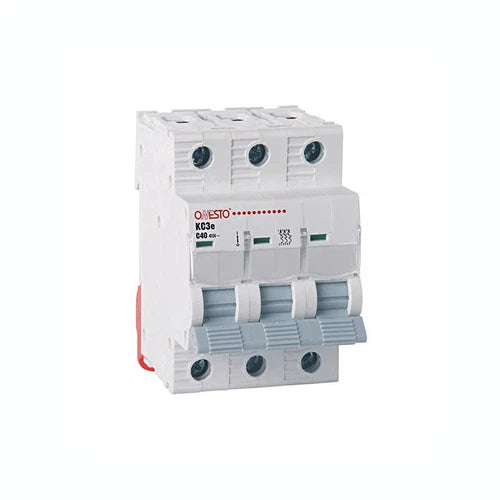

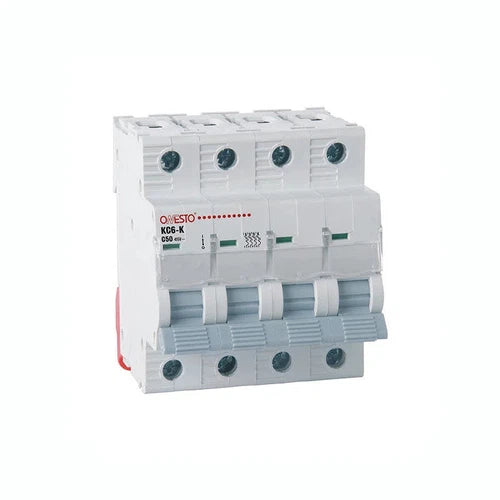

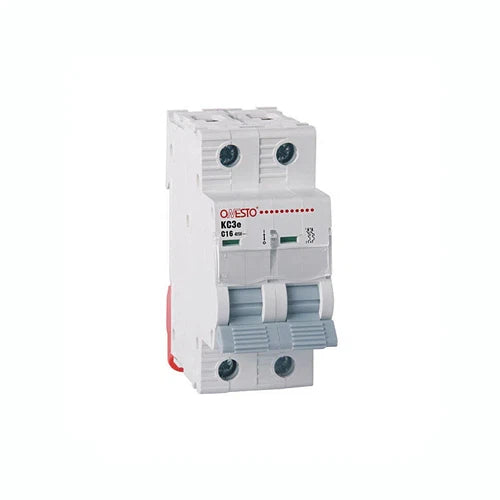

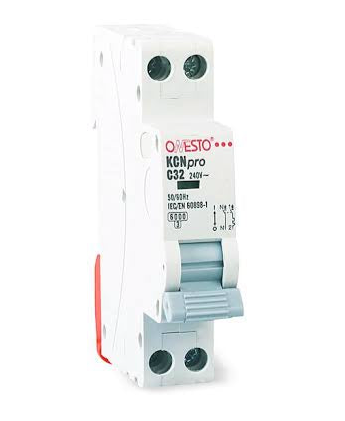

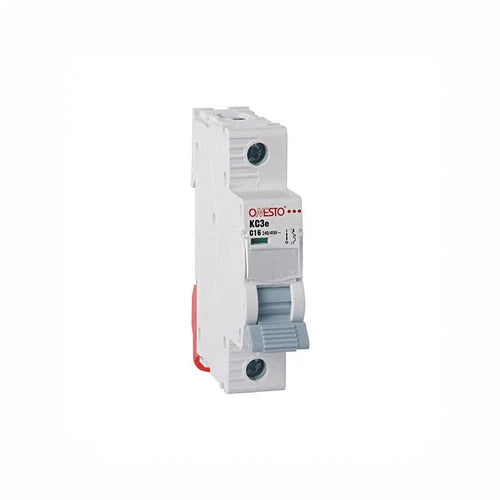

Circuit Breaker MCB DIN Onesto

OnestoSKU: KC3E-106
No reviews

Size: 6𝐴 3𝑘𝐴
Poles: 1𝑃ole
Price:
Sale priceR 34.78

Shipping calculated at checkout

Stock:
In stock 25 units [HDN]

Pickup available at Archies Hardware

Usually ready in 1 hour

Description


3KA

  • MCB
  • Standard:
  • IEC60898-1
  • Tripping Curve:
  • B,C,D
  • Number of Poles:
  • 1 2 3 4
  • Rated Current:
  • 1/2/3/4/6/10/16/20/25/32/40/50/63 A
  • Rated Operation Voltage Ue :
  • 240/415V AC for 1P; 415V AC for 2,3,4P
  • Rated Insulation Voltage Ui:
  • 415V
  • Rated Frequency Hz:
  • 50/60Hz
  • Rated Impulse withstand Voltage Uimp:
  • 4kV
  • Rated ultimate short-circuit breaking capacity:
  • Icu (kA):3.0kA
  • Rated service short-circuit breaking capacity:
  • Ics (kA):3.0kA
  • Type of release:
  • Thermo-magnetic
  • Protection Index IP:
  • IP20
  • Ambient Temperature:
  • at 30°C

6KA

  • MCB
  • Standard:
  • IEC60898-1
  • Tripping Curve:
  • B,C,D
  • Number of Poles:
  • 1 2 3 4
  • Rated Current:
  • 1/2/3/4/6/10/16/20/25/32/40/50/63 A
  • Rated Operation Voltage Ue :
  • 240/415V AC for 1P; 415V AC for 2,3,4P
  • Rated Insulation Voltage Ui:
  • 415V
  • Rated Frequency Hz:
  • 50/60Hz
  • Rated Impulse withstand Voltage Uimp:
  • 4kV
  • Rated ultimate short-circuit breaking capacity:
  • Icu (kA):6.0kA
  • Rated service short-circuit breaking capacity:
  • Ics (kA):6.0kA
  • Type of release:
  • Thermo-magnetic
  • Protection Index IP:
  • IP20
  • Ambient Temperature:
  • 30°C
