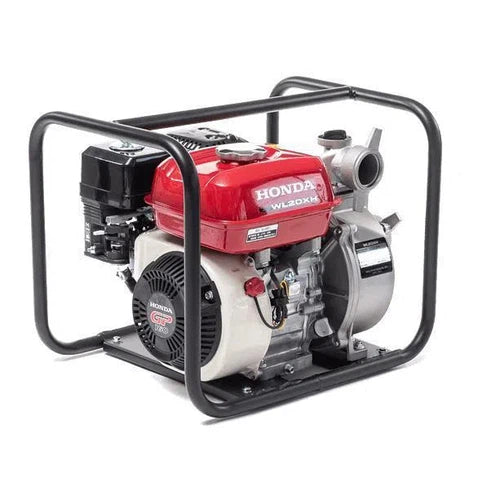

Original OEM Engine pump and frame
| PUMP |
WL20XH/WL30XH |
| Intel/outlet diameter |
50mm/80mm |
| Total head Lift (max) |
32m/23m |
| Suction head Lift (max) |
7.5m/ |
| Max. Discharge Capacity |
670 /1100Β L/min.
|
| Self-priming Time (at 5 m) |
150 sec |
| Length |
490 mm |
| Width |
385 mm |
| Height |
410 mm |
| Dry weight |
24 kg |
| ENGINE |
Β |
| Model |
GP160H |
| Engine Type |
4-Stroke, overhead value single cylinder, 25* inclined |
| Displacement |
163 cm3 |
| Net Power (SAE J1349)* |
3.6 kW (4.8 HP) / 3,600 rpm |
| Max. Net Torque (SAE J1349*) |
10.3 N.m (1,05 kgf.m, 7.6 ibf.ft) / 2,500 rpm |
| Fuel Consumption |
1.1 L/h |
| Fuel Tank Capacity |
3.1 L |
| Continuous Running Time |
2. |
